Mini 14 firing pins have gotten a bad rap lately. They have been known to fracture the tip but can be repaired successfully with the correct process.


There is available, in limited quantities and only through the


Ruger Factory or two selected gunsmiths,  a new design firing pin.


In my opinion, there is no better firing pin than one produced by the Ruger Factory. Fitting is required and necessary for safety and function.


There are aftermarket firing pins but seem to be of questionable material and hardness. They are all two piece with slightly different designs. Each design has ti’s faults. They are still good to have as a spare backup in case of emergency until a factory FP can be obtained or the original stainless factory FP is re-tipped. This is a a specific process using hardenable 17-4 TIG rod and heat treating H900 and back to factory specs.

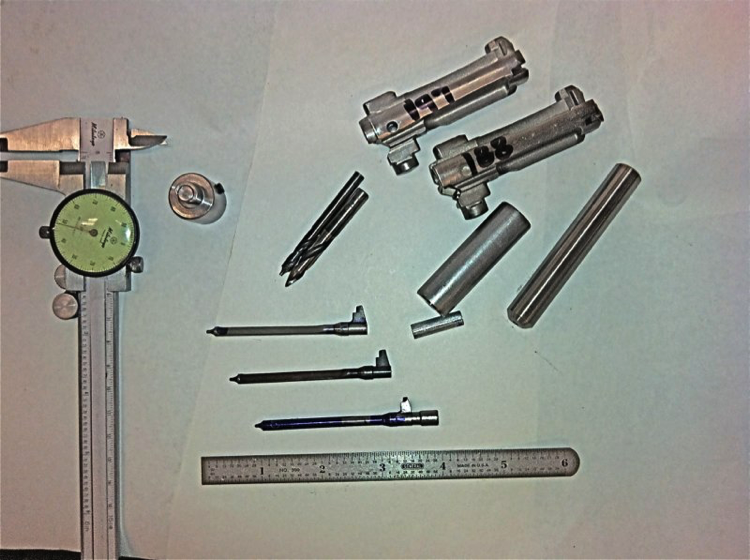

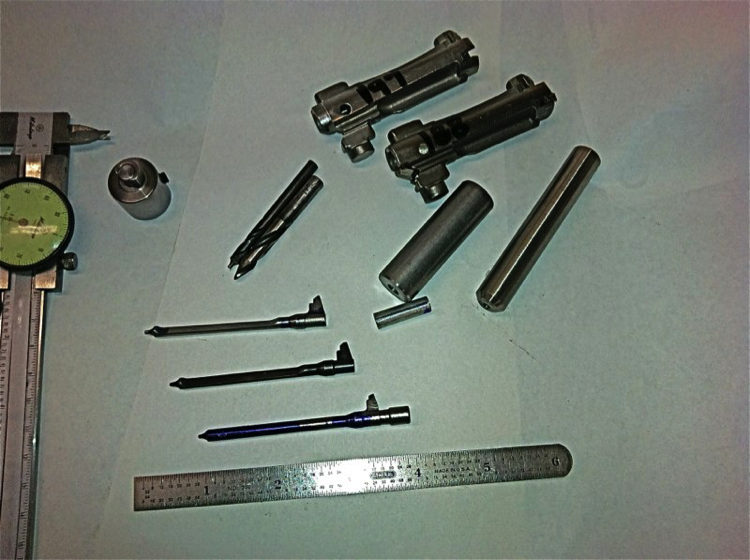

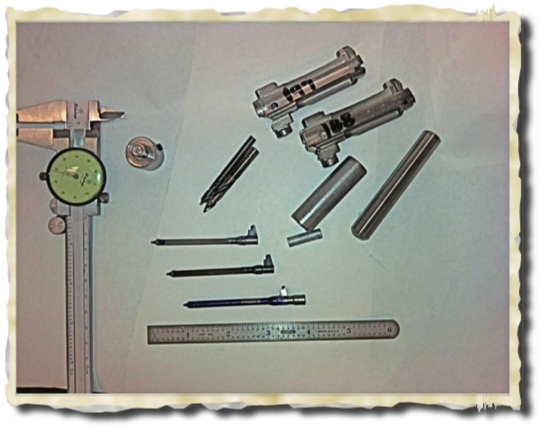

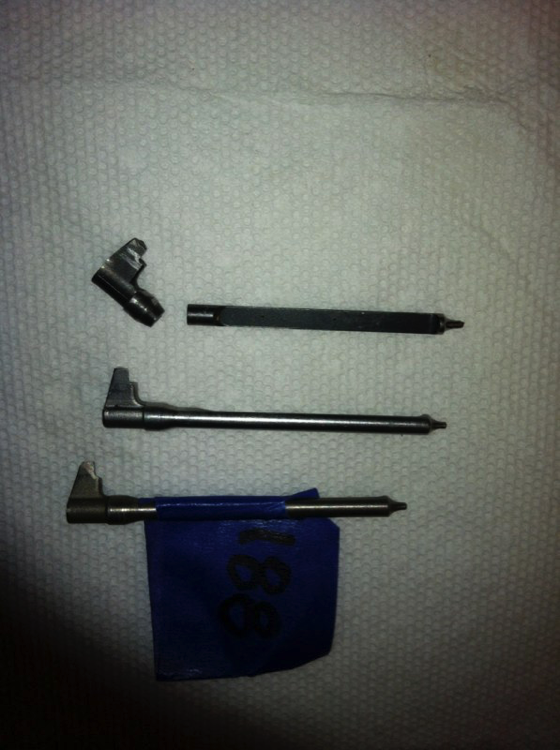

Shows Factory FP above an aftermarket one and a first failure at making one using 4340. 197 & 181 bolts above
Shows Factory FP above an aftermarket one and a first failure at making one using 4340. 197 & 181 bolts above
Pic of early tries to make a Mini FP
Pic of early tries to make a Mini FP

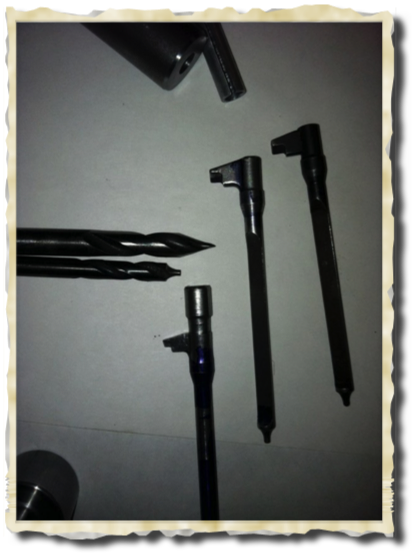

Showing formed drill bits to simulate the factory FP contours to make a master fixture for measuring critical areas.
Showing formed drill bits to simulate the factory FP contours to make a master fixture for measuring critical areas.

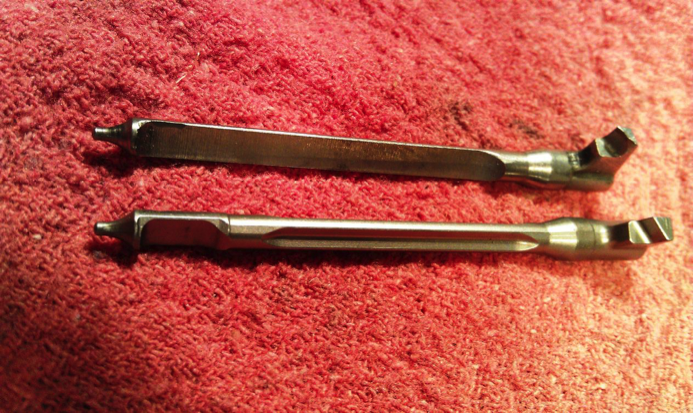

Aftermarket FP failure
Aftermarket FP failure

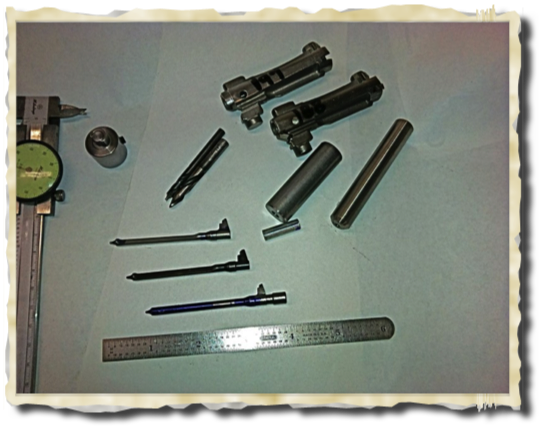

Different stages of development to make 4340 and 17-4 SS firing pins
Different stages of development to make 4340 and 17-4 SS firing pins

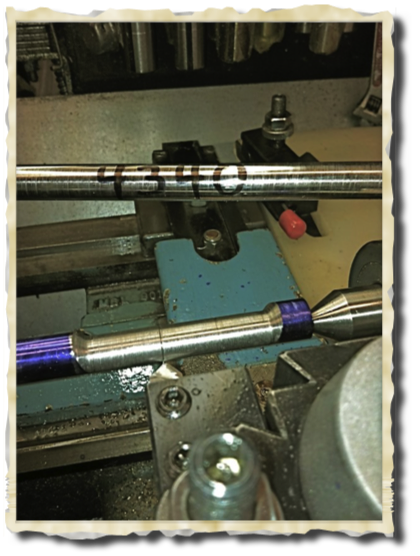

Offset turning of 4340 as a start in manufacturing the first prototype.
Offset turning of 4340 as a start in manufacturing the first prototype.

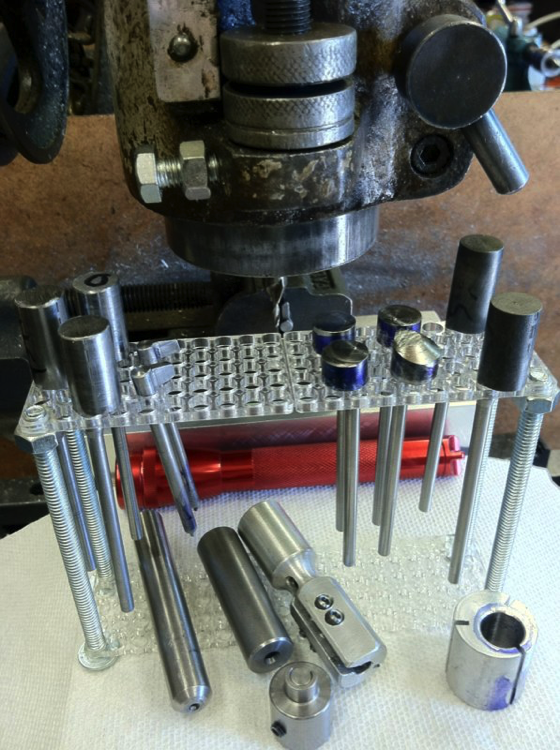

Tools & fixtures needed to hold while working with small items to machine
Tools & fixtures needed to hold while working with small items to machine
